	Edge

Hydraulic Torque Tool

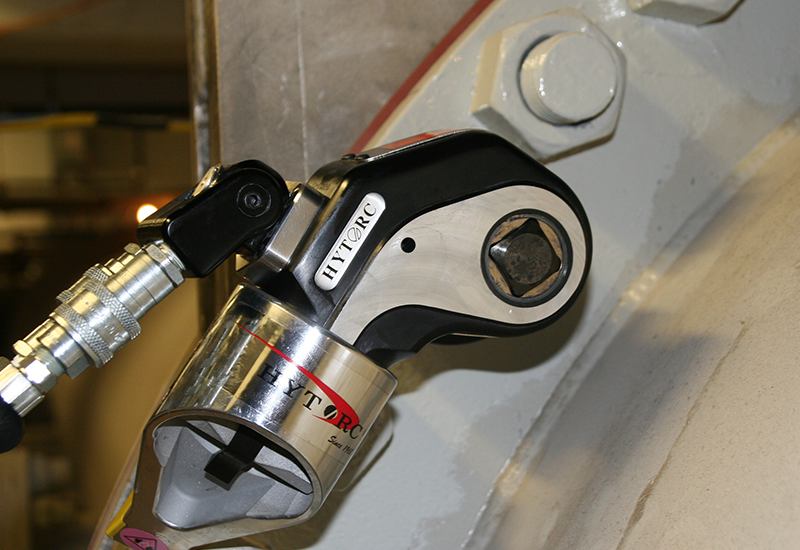

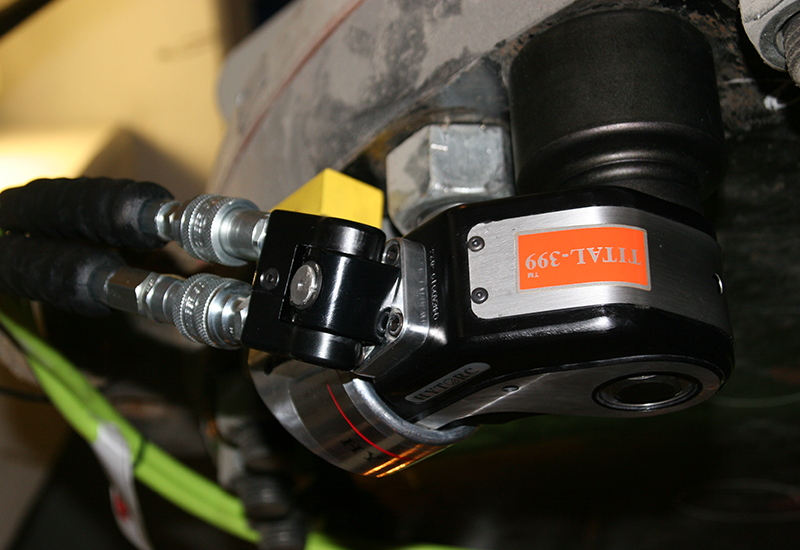

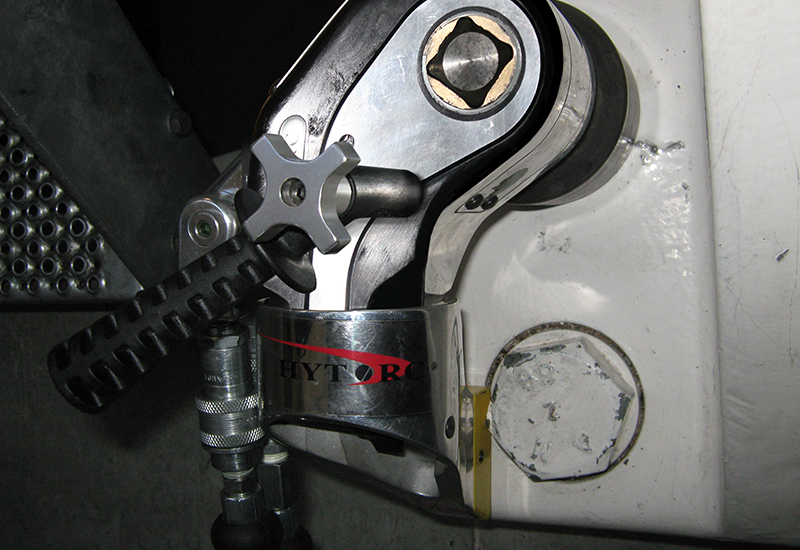

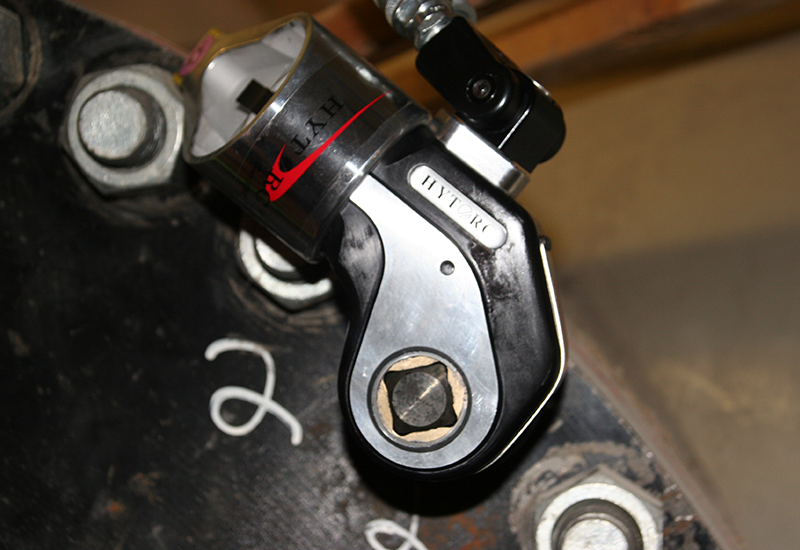

For general maintenance that requires high torque values and repeatable results, the EDGE is a workhorse. The straightforward three-moving-part design was created by HYTORC over 30 years ago and has been consistently improved upon resulting in the most tried and tested line of hydraulic torque wrenches in the world.

Tool Type:

Hydraulic

Radius

0.82" - 2.79"

Weight

3.30 - 64.70 Lbs

Torque Range:

106.00 - 29650.00 ft-lbs

Features

Simple Operation

The three-moving part design of the EDGE series reduces the number of potential repairs and keeps operating costs to a minimum.

Multi-Axis Swivel

The multi-axis swivel is used on all HYTORC hydraulic torque wrenches (with the exception of the ICE series) for maximum positioning flexibility and safety.

Plus-Through Drive

For quick and simple directional changes and maximum durability, the EDGE series features a push through square drive.
