4:1 Safety Factor
Rated to 700 bar and tested to 2,758 bar.

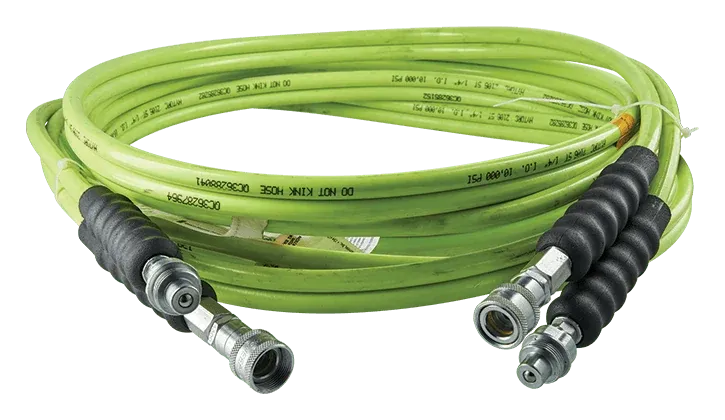

Image 1 of 1: Coiled green HYTORC hydraulic hose with quick couplers and protective sleeves
Hydraulic Hoses
High-Pressure Hoses
HYTORC Hydraulic Hoses use KEVLAR fiber and steel wire construction, with a 38 mm bend radius, a 700 bar rating (tested to 2,758 bar) and a 4:1 safety factor. They are Quick Coupler compatible and meet prEN 13204, ISO 7751 and American Jacking standards.
| Construction | KEVLAR fiber and steel wire |
|---|---|
| Bend Radius | 38 mm |
| Working Pressure | 700 bar |
| Test Pressure | 2,758 bar |
| Safety Factor | 4:1 |
| Couplers | Quick Coupler compatible |
| Standards | prEN 13204, ISO 7751, American Jacking |
Key Features
KEVLAR & Steel Wire
KEVLAR fiber and steel wire construction with a 38 mm bend radius.
Quick Coupler Compatible
Meets prEN 13204, ISO 7751 and American Jacking standards.
