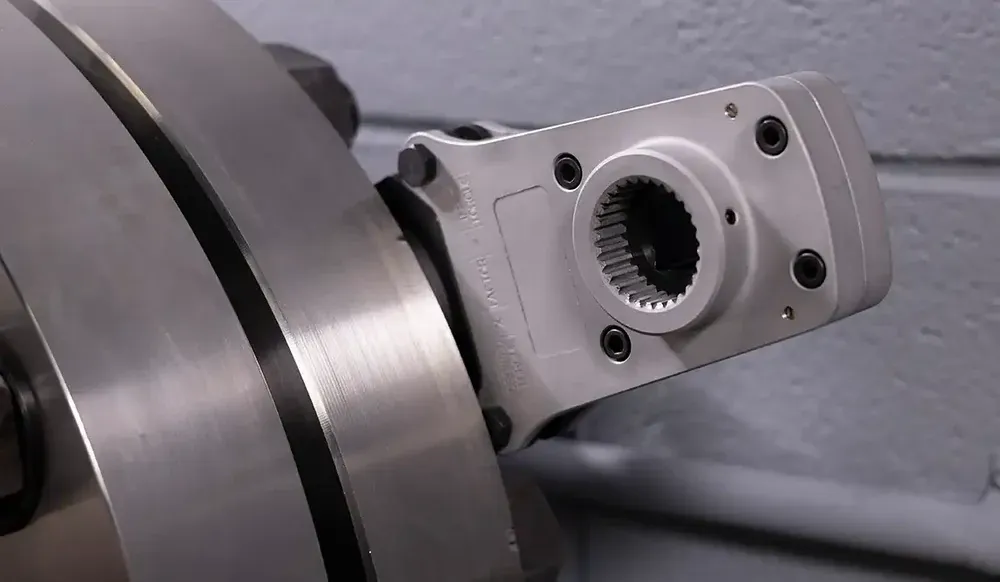

Low Clearance Access
A low-profile extension that lets square drive tools reach bolts blocked by obstructions, including bolts that protrude above the nut, without additional tooling.

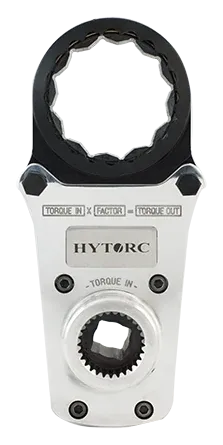

Image 1 of 3: HYTORC Offset Link low-clearance link with a 12-point cartridge
Offset Links
Low-Clearance Adapter
The HYTORC Offset Link is a slim link-style socket that converts your square drive tool into a low-clearance tool. It provides an extension that lets operators tighten bolts that are difficult or impossible to reach with limited overhead clearance or nearby obstructions, and works well where bolts protrude above the nut and standard sockets won't fit. Interchangeable cartridges can be swapped in the field to fit different nut sizes.
| Type | Low-clearance drive adapter |
|---|---|
| Drive | ¾″ or 1″ square |

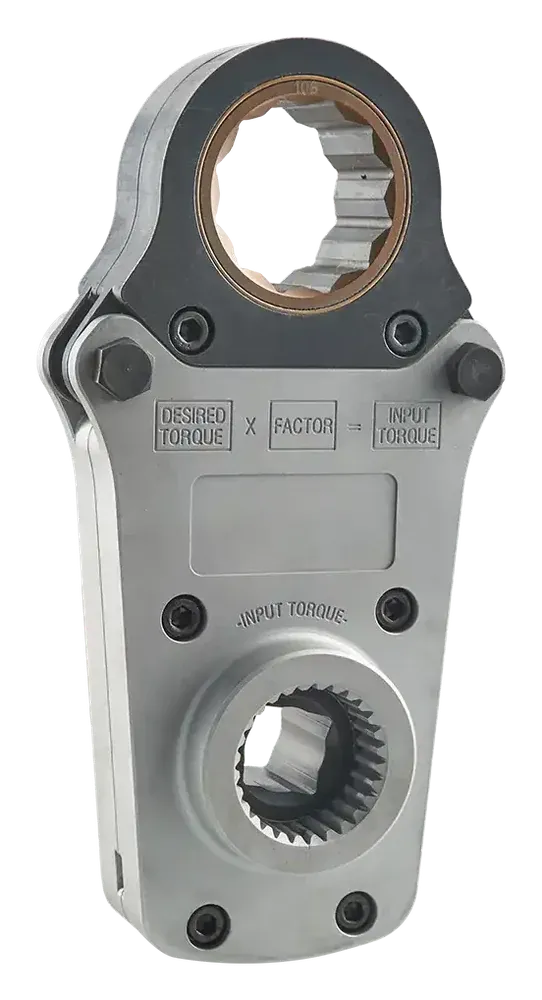

| Cartridge | 12-point hex pattern |
| Models | OL, ZOL, ZOL-DS |
Documents
Key Features

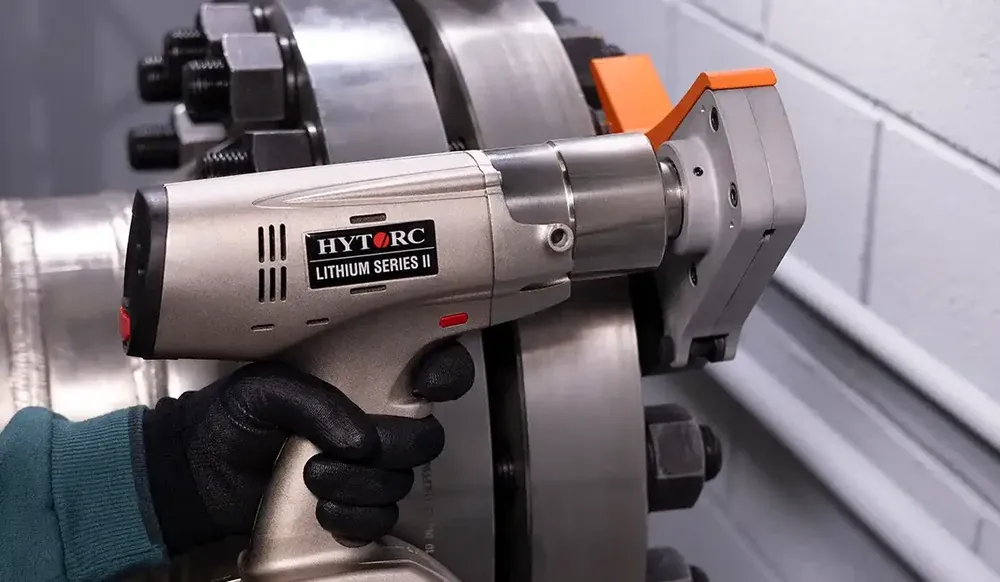

Tool Compatibility
Works with all HYTORC hydraulic, pneumatic and electric torque tools in ¾″ and 1″ square drive. The torque multiplication factor is marked on each cartridge: multiply it by the desired torque and set the tool.

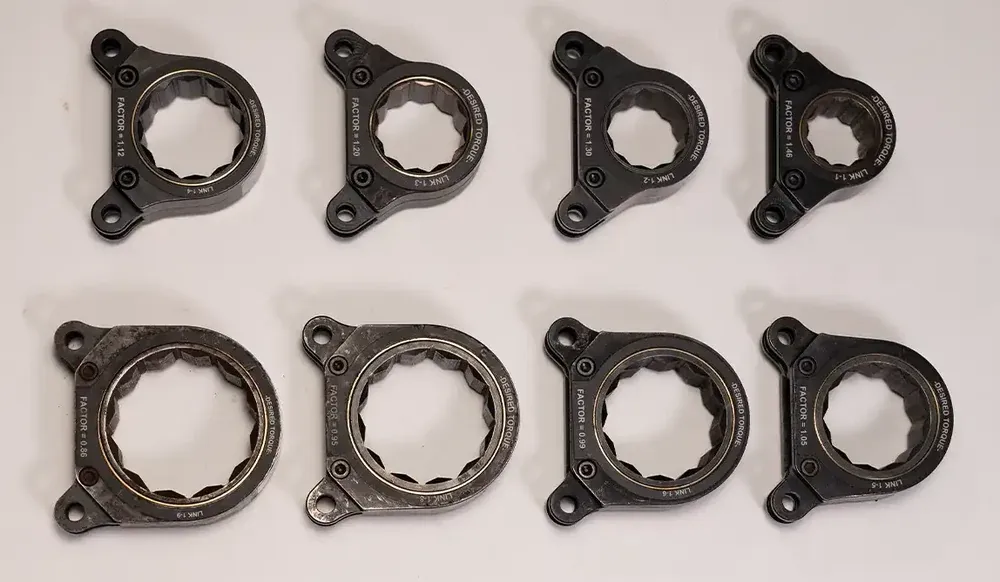

Interchangeability
Cartridges are quickly changed in the field to fit a range of hex sizes. Compatible with the HYTORC Washer, which eliminates bending and side load.
