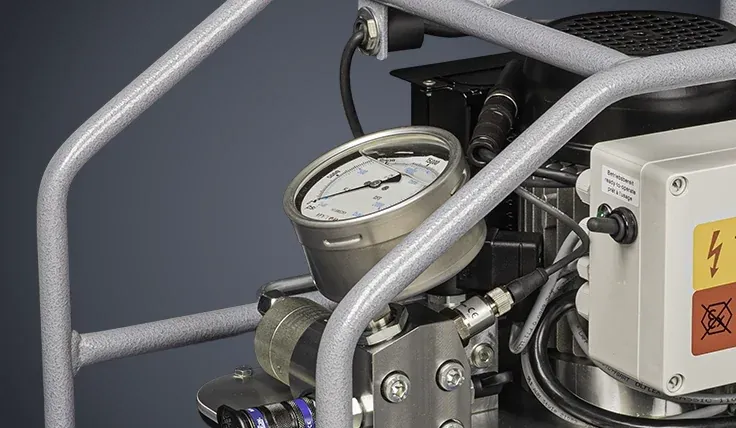

Rapid Pressure Build-up and Release
Faster pressure build-up accelerates job completion and boosts tensioning efficiency.

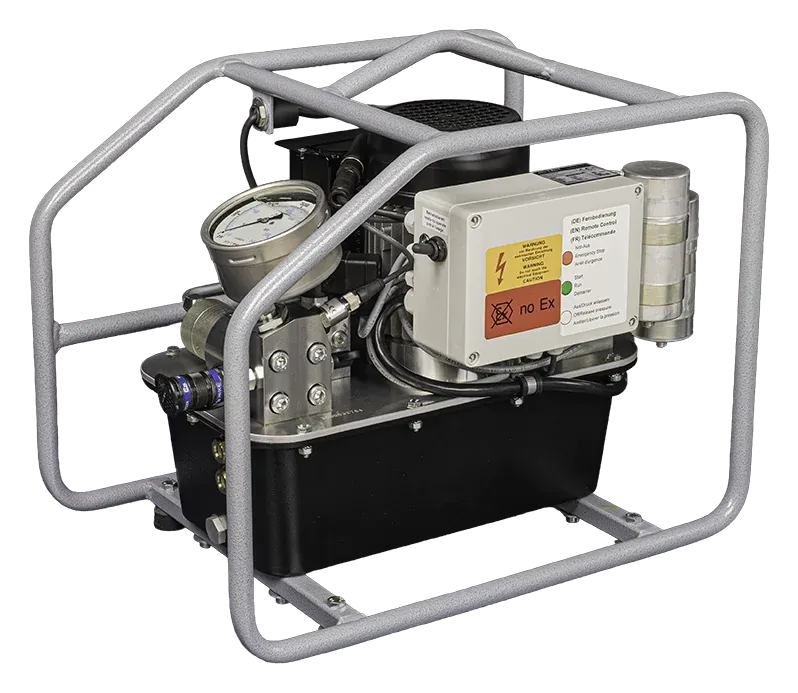

Image 1 of 4: HYTORC HY-T Electric Tensioning Pump in a protective frame
HY-T Electric Tensioning Pump
Electric Tensioning Pump
The HY-T electric tensioning pump delivers high-speed operation and simple setup to keep your projects moving. A highly visible pressure gauge gives clearer, more accurate readings, and an optional digital pressure remote adds even more control. Built for precision and performance in wind, power generation, and oil and gas, it can power numerous tensioners at once and stands up to tough jobsite conditions.
| Max Pressure | 21,750 psi (1,500 bar) |
|---|---|
| Power | 115 V: 1.6 kW / 2.2 HP · 230 V: 1.5 kW / 2.0 HP |
| Max Flow | 0.66 gal/min (2.5 L/min) |
| Reservoir | 2 gal (7.6 L) |
| Weight | 71.6 lb (32.5 kg) without oil |
| Dimensions | 18.4 × 16.5 × 13.7 in |
| Port | 1 × CEJN 116 |
| Remote | 5 m standard; digital pressure remote optional |
| Oil Cooler | Yes |
Documents
Key Features

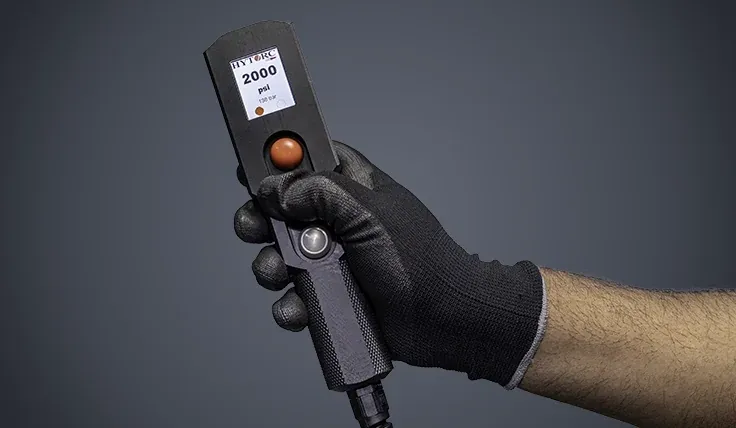

User-Friendly Design
Ensures quick and efficient operation on jobsites, especially with the optional digital remote.

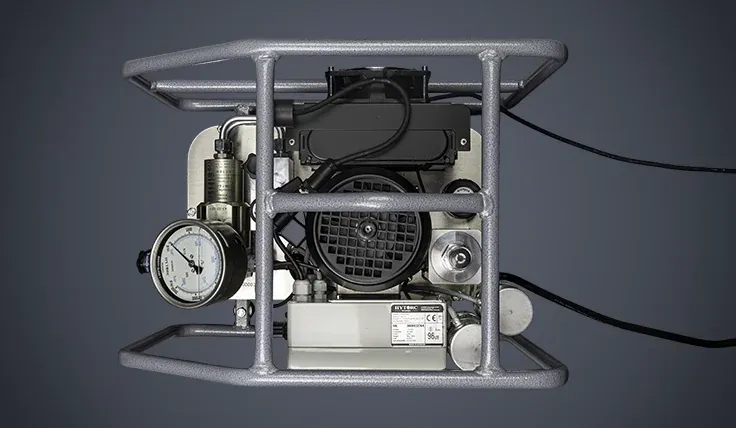

Durability
Stands up to harsh conditions.
