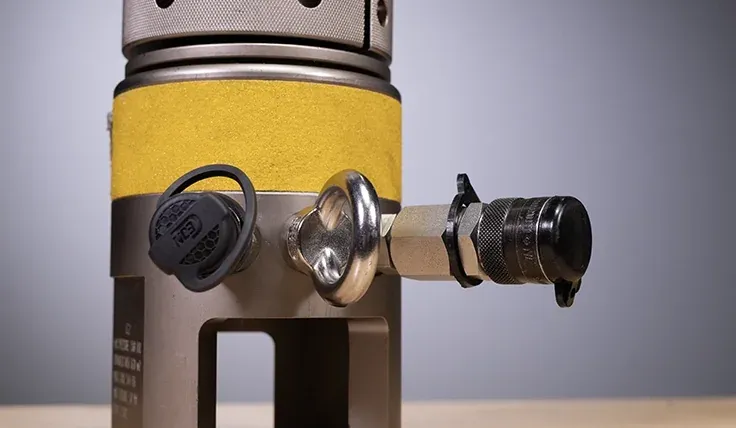

1-Piece Body Design
All-enclosed bridge and load cell.

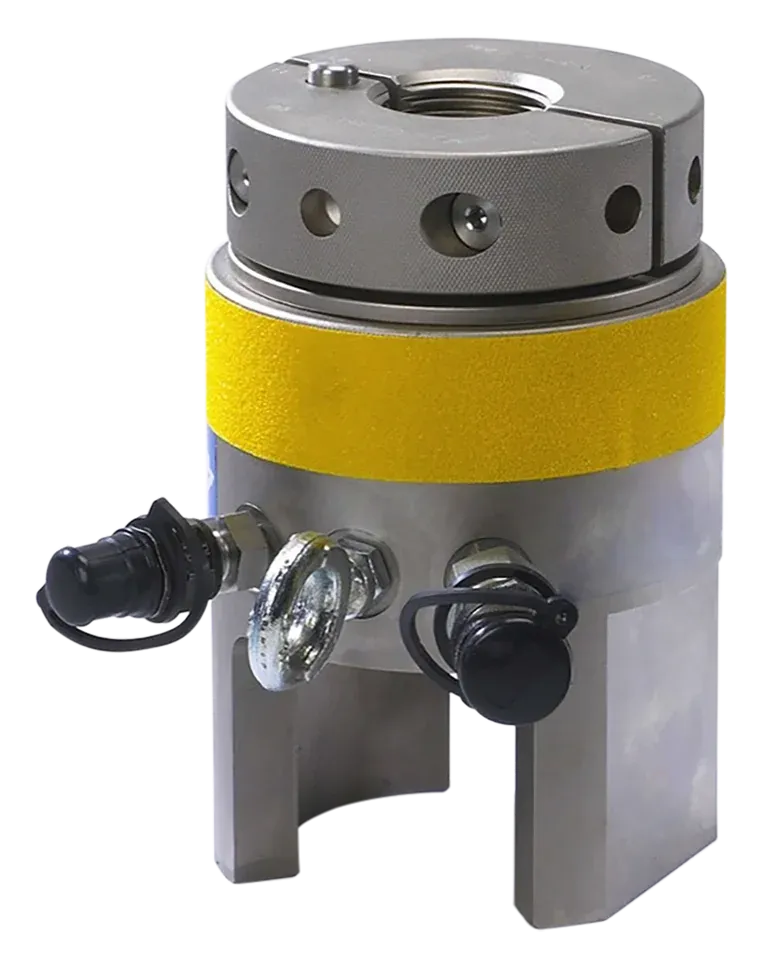

Image 1 of 4: HYTORC Subsea hydraulic bolt tensioner with yellow band
Subsea Tensioners
Subsea Hydraulic Tensioner
HYTORC Subsea hydraulic tensioners are built for reliability in the most demanding underwater environments. They feature a durable 1-piece body with an all-enclosed bridge and load cell, a generous 30 mm piston stroke, and a visible maximum stroke indicator for enhanced safety. Choose split or solid reaction nuts to fit your application and budget. Engineered for efficient handling, they set up quickly and operate smoothly so you can concentrate on the job.
| Type | Subsea Hydraulic Tensioner |
|---|---|
| Bolt Range | ⅞″ – 3½″ / M24 – M90 |
| Max Load | 575,760 lbf (2,562 kN) |
| Max Pressure | 21,750 psi (1,500 bar) |
| Piston Stroke | 1.18″ (30 mm) |
| Reaction Nut | Split or solid |
| Body | 1-piece, nickel plated |
Documents
Key Features

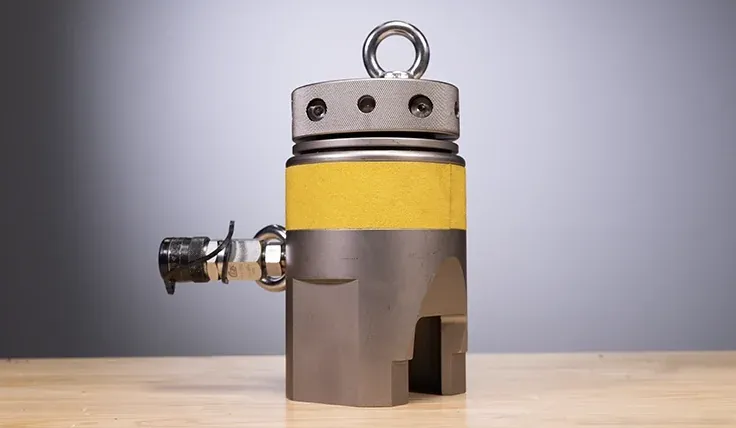

30 mm Stroke
Enables accurate tightening and loosening of bolts, meeting your specific bolting requirements.

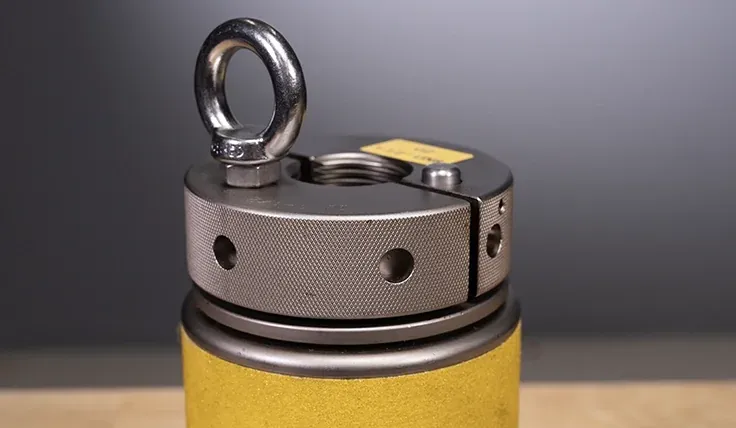

Split Reaction Nuts
Quick and hassle-free application, making your job faster and more efficient.
